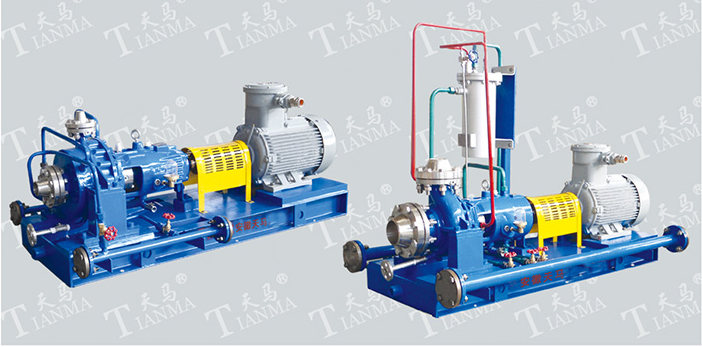

TMZE type oil and chemical process pump is a single-stage horizontal centrifugal pump, is our company according to the American Petroleum Institute API610 standard and VDMA24297 (heavy) specification design and manufacture of pump products, and in the original ZE type pump based on the optimized and improved product reliability, the type of pump body for the standard in the OH2 type structure, its basic structure is a closed structure, according to the characteristics of the transmission can also be designed for open or full open structure, axial suction, radial discharge, according to the use of the former, after grinding damage and balance hole hydraulic balance. Seal with packing seal, single face mechanical seal or double end face mechanical seal it and set cooling, flushing and sealing liquid circulation system.

Standard line according to API610 design, suction, discharge pipe flange pressure rating.

Pump work shift: from the drive motor end, the pump is turned to a clockwise rotation.
